High Quality Cavity Coupler
Release time：2015/10/10 From：NANJING SAIGEW MICROELECTRONICS & TECHNOLOGY CO., LTD. Browse：1118
Category classification： Couplers&Power Splitters&Bridge
Content of product detail：

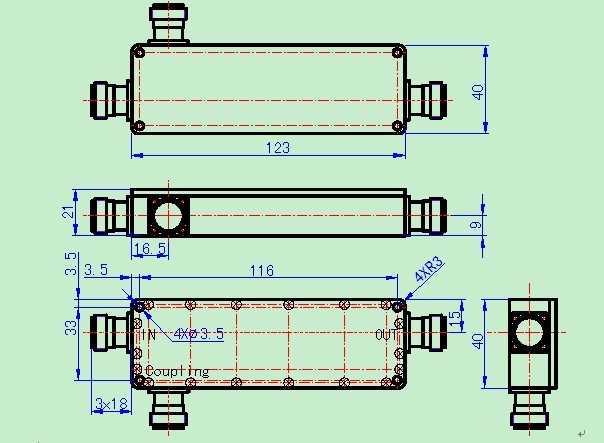

Directional Coupler
|
P/N
|
CUL-0727-05dBG
|
CUL-0727-06dBG
|
CUL-0727-07dBG
|
CUL-0727-10dBG
|
|
Frequency
|
700-2700MHz
|
700-2700MHz
|
700-2700MHz
|
700-2700MHz
|
|
Coupling
|
5±0.8dB
|
6±0.8dB
|
7±0.8dB
|
10±1dB
|
|
Insertion Loss
|
2.1 dB
|
1.7 dB
|
1.4dB
|
0.9 dB
|
|
VSWR
|
≤1.25
|
|||
|
Direction
|
≥18dB
|
|||
|
Power
|
200W
|
|||
|
IMD3
|
＜-155dBc(+43dBm×2)
|
|||
|
IMD5
|
＜-165dBc(+43dBm×2)
|
|||
|
Temp.
|
-20～+50℃
|
|||
|
Impedance
|
50Ω
|
|||
|
Connector
|
NK
|
|||
|
IP Rating
|
IP65
|
|||
