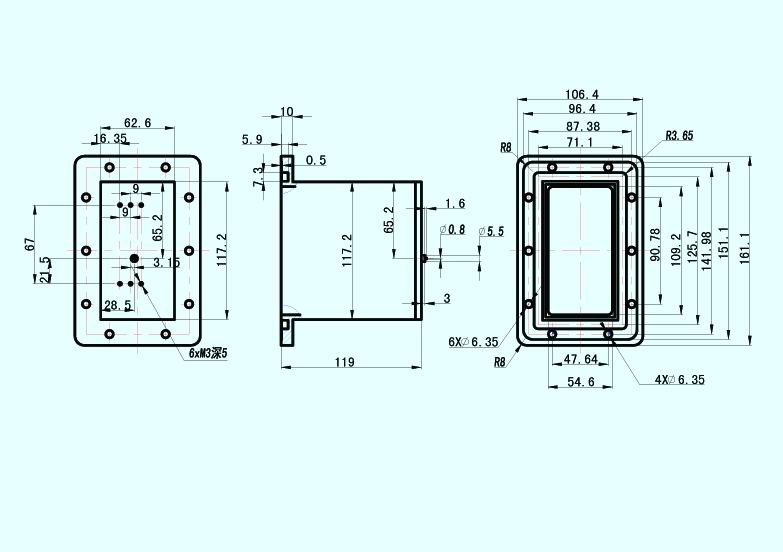

BTW-22
Release time：2015/10/10 From：NANJING SAIGEW MICROELECTRONICS & TECHNOLOGY CO., LTD. Browse：634
Category classification： Ferrite Isolators&Circulators
Content of product detail：
|
P/N
|
BTW-22
|
|
|
Frequency Range
|
2.18-2.32GHz
|
|
|
|
Normal Temp.
|
Over Temp.
|
|
Isolation
|
≥23dB
|
≥20dB
|
|
Insertion Loss
|
≤0.25dB
|
≤0.35dB
|
|
VSWR
|
≤1.2
|
≤1.3
|
|
Temp.
|
-55～+85℃
|
|
|
Connector
|
BJ22→W(180 degrees transmission)
|
|
|
Material
|
铝
|
|
