BY-84HB
Release time：2015/10/10 From：NANJING SAIGEW MICROELECTRONICS & TECHNOLOGY CO., LTD. Browse：1118
Category classification： Ferrite Isolators&Circulators
Content of product detail：
Waveguide Circulator
|
P/N
|
BY-48HB
|
|
|
Frequency
|
4.4-5GHz
|
|
|
|
Normal Temp.
|
Over Temp.
|
|
Isolation
|
≥23dB
|
≥20dB
|
|
Insertion Loss
|
≤0.25dB
|
≤0.3dB
|
|
VSWR
|
≤1.18
|
≤1.2
|
|
Power
|
250W
|
|
|
Operating Temp.
|
-55～+85℃
|
|
|
Connector
|
BJ48
|
|
|
Direction
|

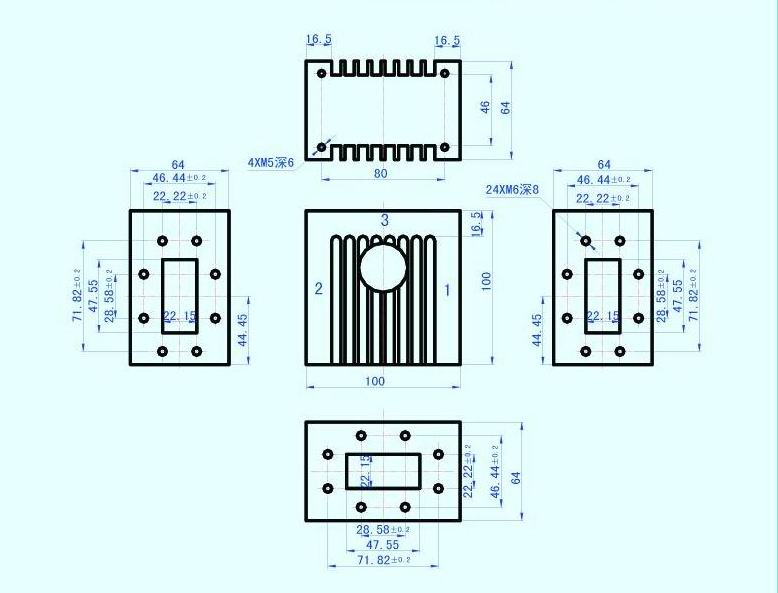

Below Drawing(1→2→3)
|
|
