TFC-0822-29NYR9
Release time：2015/10/10 From：NANJING SAIGEW MICROELECTRONICS & TECHNOLOGY CO., LTD. Browse：1000
Category classification： CDMA/GSM/DCS/3G Multi-Combiner
Content of product detail：
|
Item
|
C/G
|
DCS
|
3G
|
|
Frequency Range(MHz)
|
800-960
|
1710-1880
|
1920-2170
|
|
Bandwidth(MHz)
|
160
|
170
|
250
|
|
Insertion Loss（dB）
|
≤0.4
|
≤0.8
|
≤0.8
|
|
Return Loss（dB）
|
≥18
|
≥18
|
≥18
|
|
Passband Ripple（dB）
|
≤0.2
|
≤0.6
|
≤0.6
|
|
Rejection（dB）
|
≥80＠1710-2170MHz
|
≥80＠800-960MHz
≥80＠1920-2170MHz
|
≥80＠1710-1880MHz
|
|
IMD3（dBc）
|
≤-120@2X43dBm
|
||
|
Power(W)
|
100
|
||
|
Impedance（Ω）
|
50
|
||
|
Operating Temp.(℃)
|
-40～+85
|
||
|
Connector
|
N-F
|
||
|

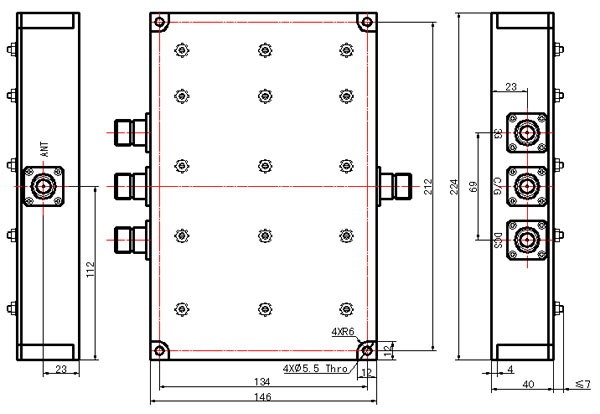

Dimension
|
Below Drawing
|
||
