SGPLL4000MHz
Release time：2015/9/28 From：NANJING SAIGEW MICROELECTRONICS & TECHNOLOGY CO., LTD. Browse：947
Category classification： Dielectric Phase-locked Osillator
Content of product detail：
|
No.
|
Item
|
Parameter
|
|
1
|
Frequency
|
4000MHz ± 0.5 MHz
|
|
2
|
Phase Noise
|
< -90dBc/Hz @ 10 KHz
< -120dBc/Hz @ 100 KHz
|
|
3
|
Power connector
|
2/SMA-F
|
|
4
|
Output Power
|
17dBm±2 dBm
|
|
5
|
Output Flatness
|
< 1dB
|
|
6
|
Frequency Stability
|
±1ppm
|
|
7
|
Harmonic
|
≥40 dBc
|
|
8
|
Spurious
|
≥70dBc
|
|
9
|
Operating Voltage
|
+7V to +12V (ripple <50mVpp)
|
|
10
|
Operating Current
|
350 mA máx @ +7V to +12V
|
|
11
|
Operating Temp.
|
-40ºC ~ +70ºC
|
|
12
|
Storage Temp.
|
-50ºC ~ +85ºC
|
|
13
|
VSWR
|
< 1.5:1 in a 250 MHz band
around 4000 MHz（Without DC Power ）
|
|
14
|

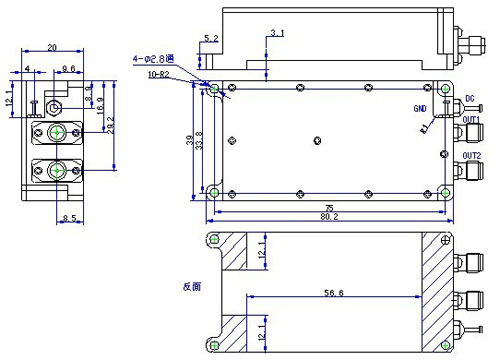

Dimension
|
80.2*39.0*20.0mm
|
