DLX-1816-45AJK1
Release time：2015/10/8 From：NANJING SAIGEW MICROELECTRONICS & TECHNOLOGY CO., LTD. Browse：1017
Category classification： DCS Band Duplexer
Content of product detail：
| Item |
Rx
|
Tx
|
|
Frequency Range (MHz)
|
1710~1755
|
1805~1850
|
|
Bandwidth(MHz)
|
45
|
45
|
|
Insertion Loss(dB)
|
≤1.5
|
≤1.5
|
|
Return Loss(dB)
|
≥20
|
≥20
|
|
Passband Ripple(dB)
|
≤0.5
|
≤0.5
|
|
Rejection(dB)
|
≥90
|
≥90
|
|
Power(W)
|
100
|
|
|
Temp.(℃)
|
-40~+85
|
|
|
Connector
|
SMA-F
|
|
|

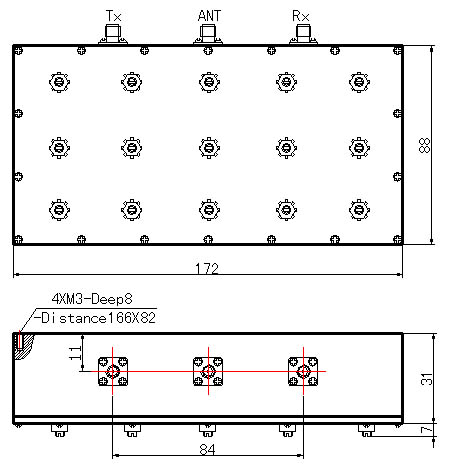

Dimension
|
Below Drawing
|
|
