DLX-0912-06AJR1
Release time：2015/10/8 From：NANJING SAIGEW MICROELECTRONICS & TECHNOLOGY CO., LTD. Browse：966
Category classification： GSM Band Duplexer
Content of product detail：
|
Item
|
Tx
|
Rx
|
|
Frequency Range（MHz）
|
954～960
|
909～915
|
|
Bandwidth（MHz）
|
6
|
6
|
|
Insertion Loss（dB）
|
＜1.8
|
＜1.8
|
|
Rejection（dB）
|
90@909～915MHz
|
90@954～960MHz
|
|
intersection＞70dB
|
||
|
VSWR
|
＜1.2
|
|
|
Connector
|
SMA-F
|
|
|

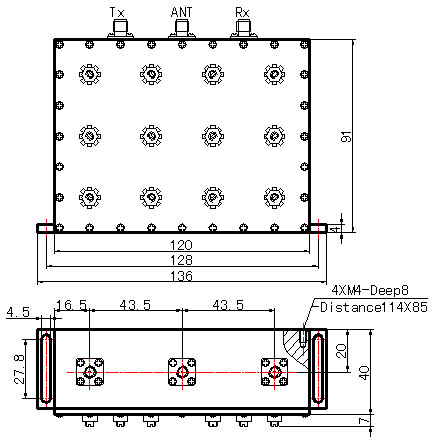

Dimension
|
Below Drawing
|
|
