SFC-0822-39NYK2
Release time：2015/10/10 From：NANJING SAIGEW MICROELECTRONICS & TECHNOLOGY CO., LTD. Browse：874
Category classification： CDMA/GSM/DCS/3G Multi-Combiner
Content of product detail：
|
Item
|
CDMA
|
GSM
|
DCS
|
3G
|
|
Frequency Range（MHz）
|
825-880
|
909-960
|
1745-1850
|
1920-2170
|
|
Bandwidth（MHz）
|
55
|
51
|
105
|
250
|
|
Insertion Loss（dB）
|
≤0.8(Normal-Temp.)
≤1.2(High/Low Temp.)
|
≤0.8(Normal-Temp.)
≤1.2(High/Low Temp.)
|
≤0.8(Normal-Temp.)
≤1.2(High/Low Temp.)
|
≤0.8(Normal-Temp.)≤1.2(High/Low Temp.)
|
|
VSWR
|
≤1.3
|
≤1.3
|
≤1.3
|
≤1.3
|
|
Passband Ripple（dB）
|
≤0.6(Normal-Temp.)≤0.9(High/Low Temp.)
|
≤0.6(Normal-Temp.)≤0.9(High/Low Temp.)
|
≤0.6(Normal-Temp.)
≤0.9(High/Low Temp.)
|
≤0.6(Normal-Temp.)
≤0.9(High/Low Temp.)
|
|
Rejection（dB）
|
≥80@909-960MHz
≥80@1745-1850MHz
≥80@1920-2170MHz
|
≥80@825-880MHz
≥80@1745-1850MHz
≥80@1920-2170MHz
|
≥80@825-880MHz
≥80@909-960MHz
≥80@1920-2170MHz
|
≥80@825-880MHz
≥80@909-960MHz
≥80@1745-1850MHz
|
|
IMD3(dBc)
|
≤-120@2x43dBm
|
|||
|
Power（W）
|
100
|
|||
|
Impedance（Ω）
|
50
|
|||
|
Temp.(℃)
|
-20--+65
|
|||
|
Connector
|
N-F
|
|||
|

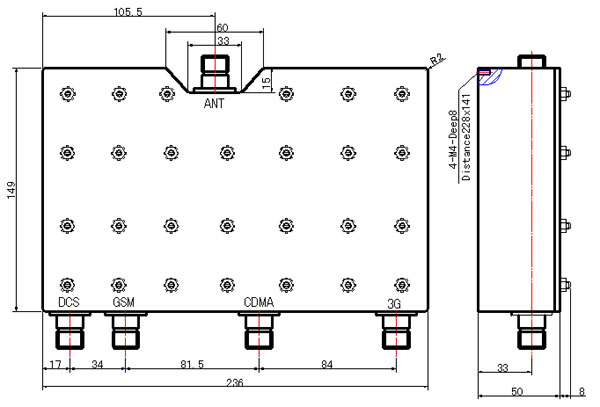

Dimension
|
Below Drawing
|
|||
